5600K Three Phase Dry Transformer Cast Coil step up Transformer
33KV
Performance Characteristic
* Simple maintenance: seldom need any maintenance.
* They are pollution-free
* They are used in the areas of contaminated and damped
* They are easier to Install.
* They have long servie life because of the dielectric heating &
low thermal
* Protects the property & people
* For short circuit currents, they have high resistance
* Performance is excellent
Main Data
| Type | Dry type, cast resin |
| Model Number | SCB10-5600KVA/33~0.4KV |
| Phases | single or three phase |
| Rated capacity | 50-6300KVA |
| Insulation Type | F/H |
| Cooling Method | AN/AF |
| Primary voltage | 12/24/33KV |
| Secondary voltage | 400/230V |
| Vector Group | Dyn11,Yyn0 |
| Tapping Range | ±2×2.5 |
| Rated frequency | 50Hz/60Hz |
| Temperature rise | 100℃ |
| Impedance | 9% |
| No-load loss | 7487W |
| On-load loss(120℃) | 55320W |
| Winding material | Aluminum or Copper |
| IP rate | IP00 to IP54 |
| Fireproof class | F1 |
| Core material | Silicon steel |
| Standard | ANSI,IEC |
| Certified | CE/ISO |
Specification
| Rated capacity | High Voltage | Low | Connection Symbol | No-Load Loss | On-Load Loss | No Load Current | Weight | Short Circuit Impendence |
| (KVA) | (KV) | Voltage | (W) | (W) | (%) | (KG) | (%) |
| (KV) | | | | | |
| 10 | 6 | 0.4 | Dyn11 | 0.15 | 0.325 | 4.1 | 130 | 4 |
| 30 | 6.3 | Yyn0 | 0.215 | 0.75 | 3.2 | 260 |
| 50 | 10 | | 0.305 | 1.055 | 2.8 | 315 |
| 80 | 10.5 | | 0.415 | 1.46 | 2.6 | 470 |
| 100 | 11 | | 0.45 | 1.665 | 2.4 | 520 |
| 125 | | | 0.53 | 1.955 | 2.2 | 585 |
| 160 | | | 0.61 | 2.25 | 2.2 | 670 |
| 200 | | | 0.7 | 2.675 | 2 | 790 |
| 250 | | | 0.81 | 2.915 | 2 | 920 |
| 315 | | | 0.99 | 3.67 | 1.8 | 1085 |
| 400 | | | 1.1 | 4.22 | 1.8 | 1320 |
| 500 | | | 1.305 | 5.165 | 1.8 | 1520 |
| 630 | | | 1.46 | 6.31 | 1.6 | 1820 | 6 |
| 800 | | | 1.71 | 7.36 | 1.6 | 2105 |
| 1000 | | | 1.99 | 8.6 | 1.4 | 2550 |
| 1250 | | | 2.35 | 10.26 | 1.4 | 2900 |
| 1600 | | | 2.755 | 12.42 | 1.4 | 3490 |
| 2000 | | | 3.735 | 15.3 | 1.2 | 4220 |
| 2500 | | | 4.5 | 19.53 | 1.2 | 4955 |

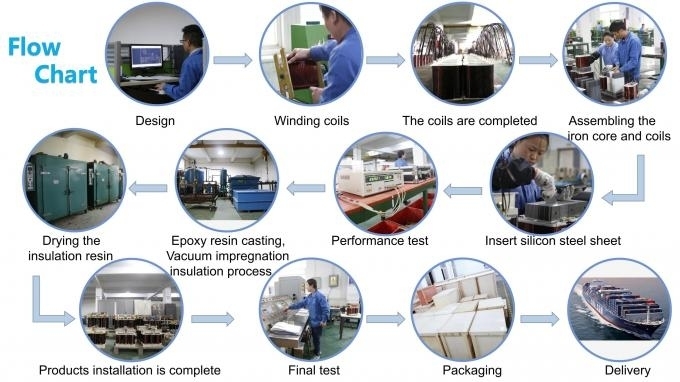

Production process
