Three Phase Electrical Pad Mounted Step Down Oil Immersed
Transformer 1000kva 15kv
summary
The three phase pad mounted transformers we produce have obtained
UL certification, with capacities ranging from 30 to 5500kVA and
voltages up to 34.5kV. Our products are exported to North America
the Philippines and other places in large quantities.

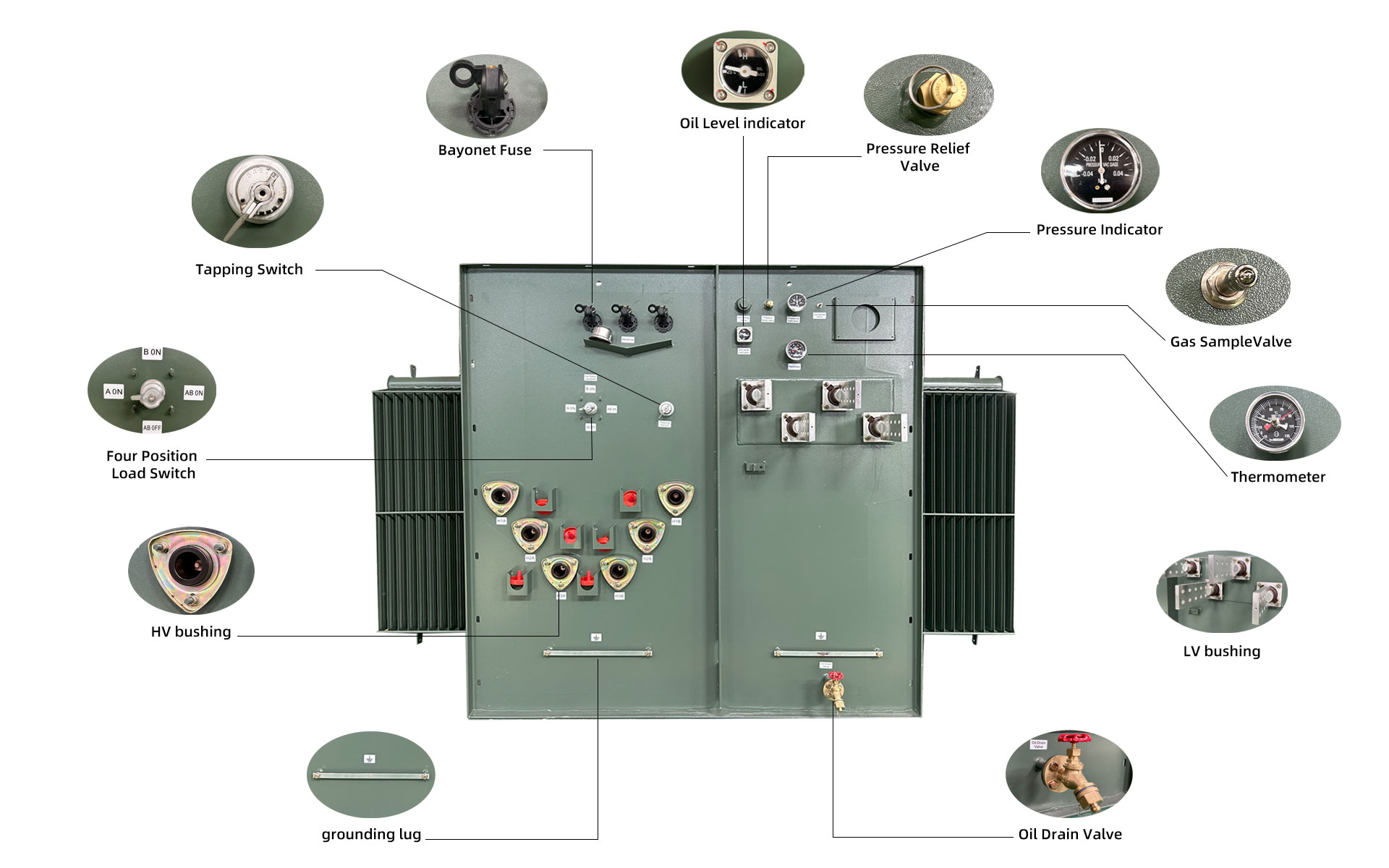

Product Structure
Performance
1) The structure is compact and reasonable, and the volume is
small, which is only about one-third of the European-style box
change of the same capacity;
2) Fully sealed, fully insulated structure, no need to set up
safety barriers, and reliable guarantee for personal safety;
3) There are a variety of power supply schemes for users to choose
from, which can adopt terminal power supply and realize ring
network or dual power supply;
4) S11 oil-immersed power transformer is adopted, which has low
loss, low temperature rise and strong overload capacity;
5) Double fuses (backup protection fuse + plug-in fuse) are used
for protection, and the plug-in fuse fuse has the current and
temperature dual sensitivity characteristics to ensure the safe and
reliable operation of the product;
Main data
| Transformer Type | Pad Mounted, Compartmental-Type |
| Transformer Configuration | Liquid Filled Pad Mounted |
| Transformer Feed Type | Loop Feed |
| Phase | Three Phase |
| Capacity | 1 MVA (1000 KVA) |
| Primary Voltage | 12470GrdY/7200 |
| Primary Voltage Class | 15 kV Class |
| Primary Phasor | Grounded Wye |
| Primary BIL | 95 KV |
| Secondary Voltage | 208Y/120 |
| Secondary Voltage Class | 1.2 kV Class |
| Secondary BIL | 30 KV |
| Frequency | 60 Hz |
| Temperature Rise | 65°C |
| Cooling Class | KNAN; Self-Cooled |
| Tap Changer | 5-position Tap Changer |
| Impedance (Typical) | 5.75% |
| Winding Material | Copper |
| Ambient Temperature Rating | 40°C |
| Sound Level | 58 dBA |
| Elevation Rating | 3300ft (1000 meters) Above Sea Level |
| Dimensions | 89''-W x 59''-D x 64''-H |
| Weight | 8200 lb |
| Ratings | Meets/Exceeds DOE 2016 Efficiency Ratings |
| Efficiency % | 99.20% |
| No Load Loss (in watts)) | +/- 1,300W |
| Full Load Loss (in watts) at 100% | +/- 8,500W |
Standard Features
• 60 Hz operation.
• 65°C average winding rise.
• Radial & loop feed arrangements.
• Dead and live front type of HV terminals.
• HV BIL 45 – 150 kV (Dead Front) 200 kV (Live Front).
• LV BIL 30 – 60 kV.
• Three-point latching of low-voltage door.
• High-voltage door, which can be opened only after
the low-voltage door is opened.
• Rigid steel partition.
• Transformer tank welded from cover to base.
• Permanent nameplate.
• One-inch NPT pipe cap filling provision.
• ANSI tank ground pads.
• One-inch drain valve and sampler.
• Automatic pressure-relief valve (35 SCFM).
• Tap changer with (2) 2.5% full capacity taps above
and below nominal.
• One 10”x18” (or 14”x25”) hand hole in transformer
tank cover.
• Painted olive-green color (Munsell 7GY 3.29/1.5).
• Designed, manufactured and tested in accordancewith the latest
ANSI standards
Technical drawings
Specification
| Rated Capacity | Loss(w) | Dimension(mm) | Weight(kg) |
| No-load Loss(W) | On-load Loss | W | D | H | Oil Weight (L) | Total Weight (KG) |
| 45kVA | 160 | 1000 | 1730 | 990 | 1270 | 416 | 950 |
| 75kVA | 180 | 1250 | 1730 | 990 | 1270 | 435 | 1020 |
| 150kVA | 280 | 2200 | 1730 | 1245 | 1270 | 473 | 1225 |
| 300kVA | 480 | 3650 | 1830 | 1295 | 1270 | 605 | 1655 |
| 500kVA | 680 | 5100 | 2260 | 1345 | 1270 | 720 | 2110 |
| 750kVA | 980 | 7500 | 2260 | 1448 | 1628 | 1022 | 2950 |
| 1000kVA | 1150 | 10300 | 2260 | 1500 | 1625 | 1325 | 3720 |
| 1500kVA | 1640 | 14500 | 2210 | 1470 | 2150 | 1552 | 4672 |
| 2000kVA | 2160 | 20645 | 2380 | 1600 | 2220 | 1855 | 5670 |
| 2500kVA | 2680 | 27786 | 3070 | 1650 | 2330 | 2006 | 6580 |
| 3000kVA | 3300 | 30300 | 3260 | 1850 | 2460 | 2336 | 7500 |
| 3750kVA | 4125 | 37875 | 4080 | 2060 | 2680 | 2650 | 8450 |
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just
provide the photos of damaged accessory,then we will provide free
service. According to the number of products,we will provide easily
damaged accessories for free. we also can provide technical support
if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can
customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put
them into production. The above customized services must be
confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold
CE certificate. We have professional engineers. Workers are
strictly required to make products according to the drawings. Each
process has technical instructors.The QC supervisors will regularly
inspect the production. We will do products performance tests
during production, and comprehensive quality tests when the
products is completed.
